Stockton Products® > Metal Products

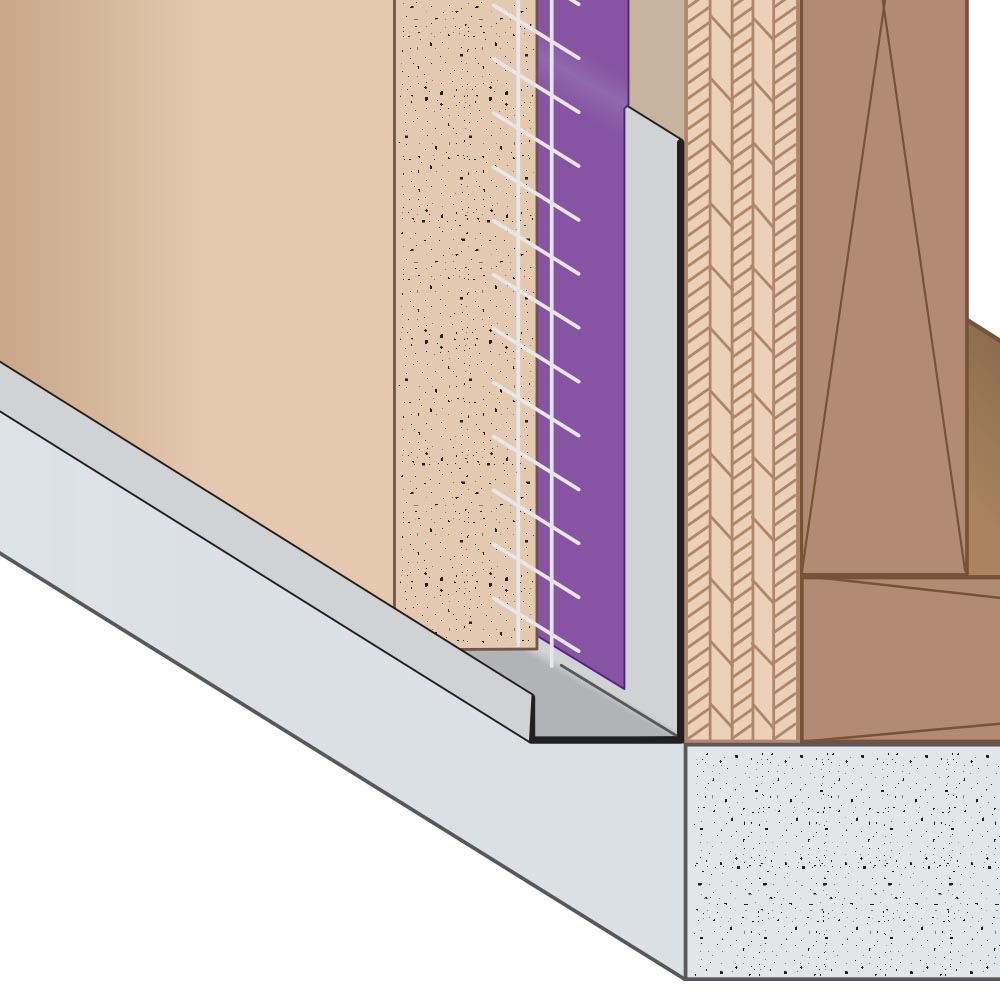

In Use

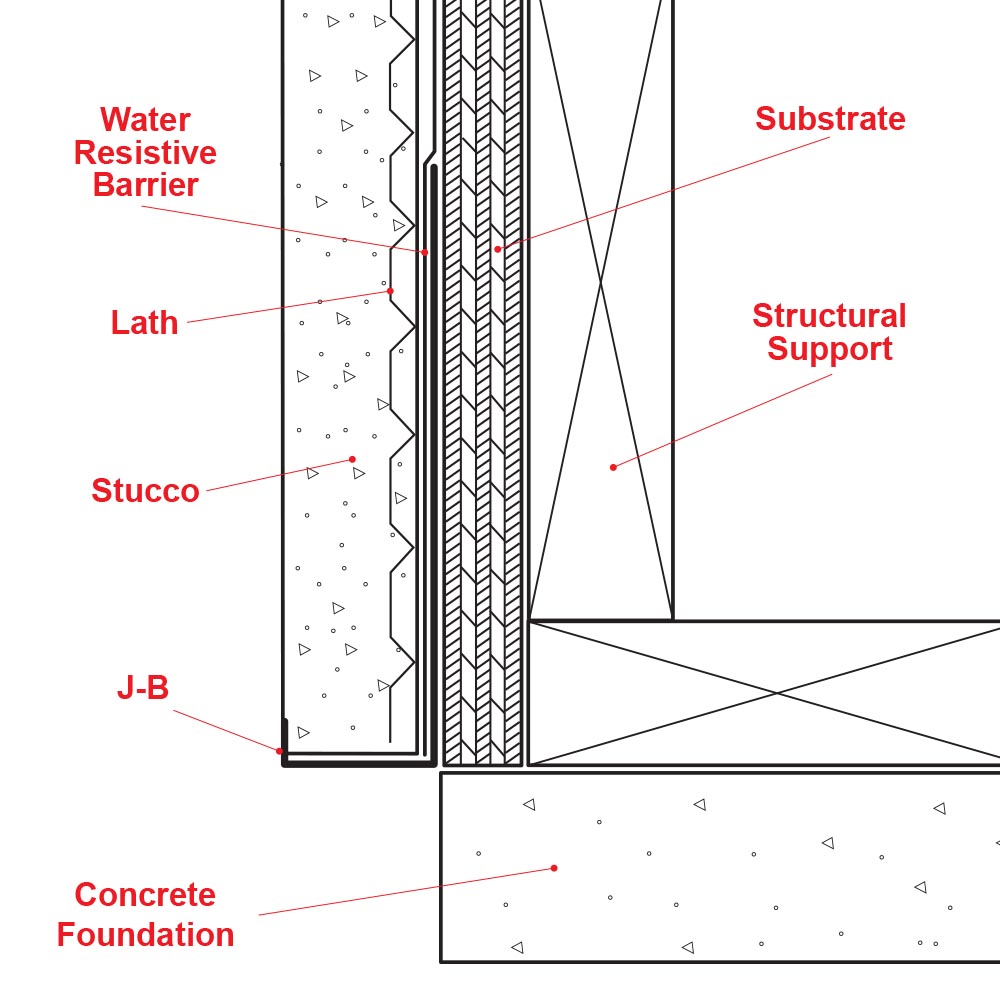

Diagram

Installation

Custom Sizes

J-B: J Bead

Special Sizes Available, Contact Customer Service For Details
SUPERIOR® Moisture Protection
Available With 1/8", 1/2" Weep Holes or No Weep
Available Curved Upon Request
Aluminum (A), Copper (C), Galvanized Steel (GS), Bonderized (BN), Galvalume® (GVM), Stainless Steel (SS) or Zinc (Z)

Standard plaster stop/casing bead for terminating stucco. Has a return key for finishing.

J-B Data Sheet
J-B Installation Guide

Stockton Submittal System

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Stockton Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.

Materials And Finishes:

More Information

Aluminum (A), Copper (C), Galvanized Steel (GS), Bonderized (BN), Galvalume® (GVM), Stainless Steel (SS) or Zinc (Z)

ASTM & Code Standards:

More Information

All Accessories are fabricated from prime galvanized steel G90 zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69. Stainless Steel A480/A480M A580M (Stainless Steel) For installation and placement instructions refer to ASTM C1063, C841 and C926.

Notes And Reference Information:

Please note not all combinations of sizes and materials may be available in stock.

Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.

Ventilation Guide

Proper Measurement: Ground and Point-To-Point

Radius Shape Quote Form

The Stockton Products Warranty

CSI Specifications

CAD Details

Safety Data Sheets (SDS)

Most Common Sizes

X Sizes	3/8", 1/2", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 3/8", 1 1/2" or 2"
Y Sizes	3 1/2" or 5"
Length	120"

Most Common Part Numbers:

J B078 312	J-B: X=7/8, Y=3 1/2, GS, 10'
J B078W312L	J-B: X=7/8, 1/2 Weep Hole, Y=3 1/2, GS, 10'
J B138W312L	J-B: X=1 3/8, 1/2 Weep Hole, Y=3 1/2, GS, 10'
J B034 312	J-B: X=3/4, Y=3 1/2, GS, 10'
J B138 312	J-B: X=1 3/8, Y=3 1/2, GS, 10'
J B118 312	J-B: X=1 1/8, Y=3 1/2, GS, 10'
J B034W312L	J-B: X=3/4, 1/2 Weep Hole, Y=3 1/2, GS, 10'
J B078 312Z	J-B: X=78, Y=3 1/2, Z, 10'
J B0034W312LG60	J-B: X=3/4, 1/2 Weep Hole, Y=3 1/2", GS G60, 10'
J B034 312G60	J-B: X=3/4", Y=3 1/2", GS G60, 10'
J B034W312LG60	J-B: X=3/4", 1/2 Weep Hole, Y=3 1/2", GS G60, 10'
J B078 312G60	J-B: X=7/8", Y=3 1/2", GS G60, 10'
J B078W312LG60	J-B: X=7/8", 1/2 Weep Hole, Y=3 1/2", GS G60, 10'
J B138 312G60	J-B: X=1 3/8", Y=3 1/2", GS G60, 10'
J B138W312LG60	J-B: X=1 3/8", 1/2 Weep Hole, Y=3 1/2", GS G60, 10'
